Goods Lift
Goods Lift is designed to fully integrate with a Mezzanine floor.

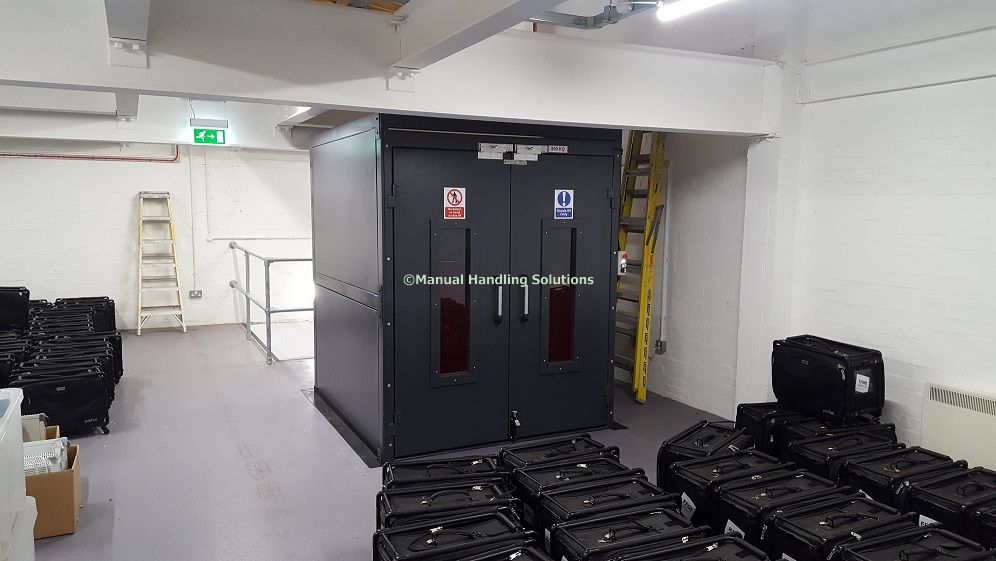

Goods Lift Croydon

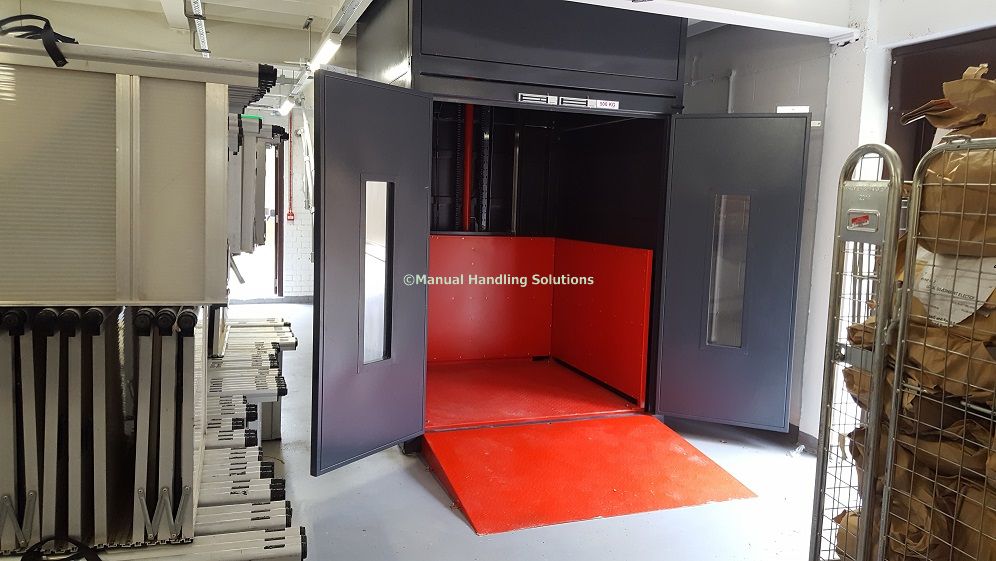

Goods Lift for Commercial and Industrial

500kg single mast hydraulic Goods Lift installed Croydon with a finished floor level 3137mm and platform size being 1500mm x 1500mm with entry and exit on the same face fitted with 1100mm high infilled panels on the non-loading sides finished in Red RAL 3020.

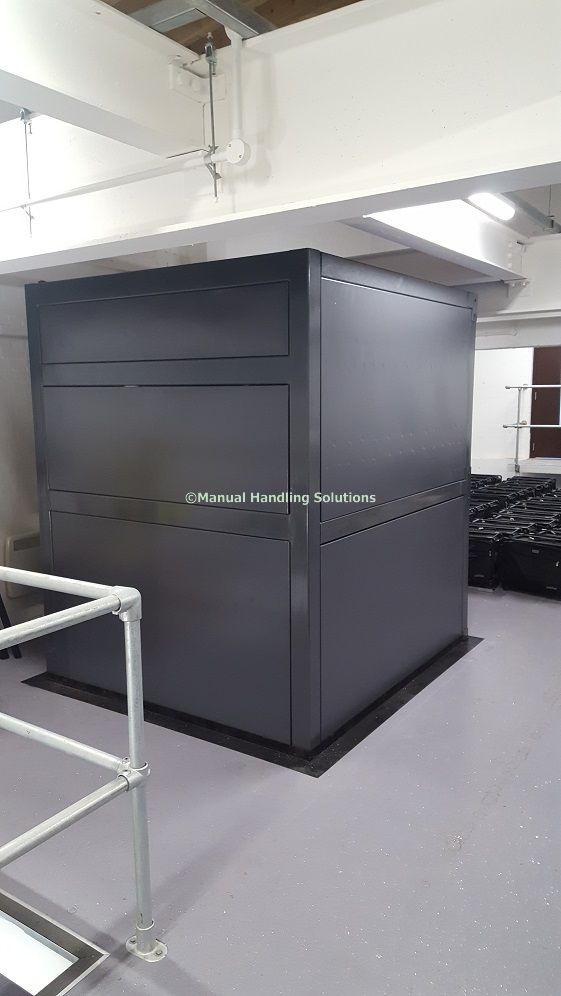

A self-supporting lift structure manufactured from 100mm x 100mm box section steel with cladded infilled panels RAL 7024.

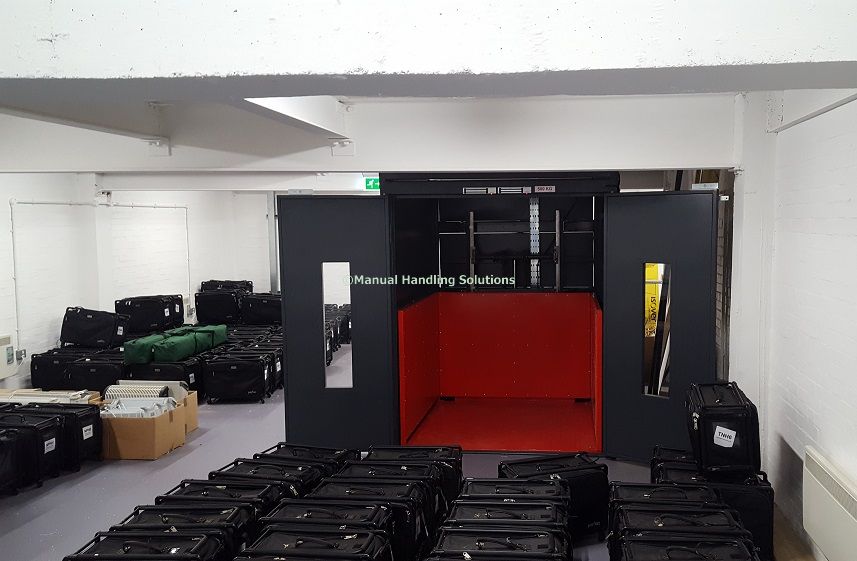

Mezzanine goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with magnetic interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed.

​The overall height of the upper level structure is 2200mm. Goods lift fitted with “Press to Go” one touch controls with emergency stop at both levels. At the lower level a 1200mm long fixed ramp x 1580mm wide will be provided to assist loading on to the 120mm deep platform finished Red RAL 3020.

To prevent damage from pallet trucks and fork lift trucks the raised power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 2.2Kw control voltage 24 volt IP55.​

General Specification

      • Emergency lowering system when power is cut off
      • Pre wired control box included magnetic starter and overload fuse
      • Upper level travel limit switch and overload relief valve
      • Hydraulic cylinders feature emergency velocity fuse if line breaks
      • Control points are fitted to both ground and upper floor levels
      • The hydraulic power pack and electrical system housed separately at ground level
      • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor

Installation; Cooling Station Refurbishment, Conduit Lane, Croydon, CR0 5RQ

Goods lifts from Manual Handling Solutions are the perfect solution to single or multi-floor transportation of equipment and goods, reducing the risk to employees, increasing efficiency and improving the bottom line.

At Manual Handling Solutions we can custom design every aspect of the lift taking into account, weight capacity, finished floor levels, platform size, loading orientation and the product to be handled.

A freestanding structural design eliminates the requirement for civil works and low level ramp access means no unwanted floor pits, furthermore safety shoot bolts, “Press to Go” operator controls and multi-floor stops can be incorporated into the design. Our goods lifts range of hydraulic goods lifts are ideal for supermarkets, warehouses, factories, restaurants, pubs, museums, theatres, hotels, retail in basement or lightwell locations.

Goods Lifts covering Bromley, Sutton, Mitcham, Epsom, Croydon

Contact us on Tel 01553 811977  or email us at sales@manualhandlingsolutions.co.uk
