Goods Lift
Goods Lift is designed to fully integrate with a Mezzanine floor.

Goods Lifts

Goods Lifts

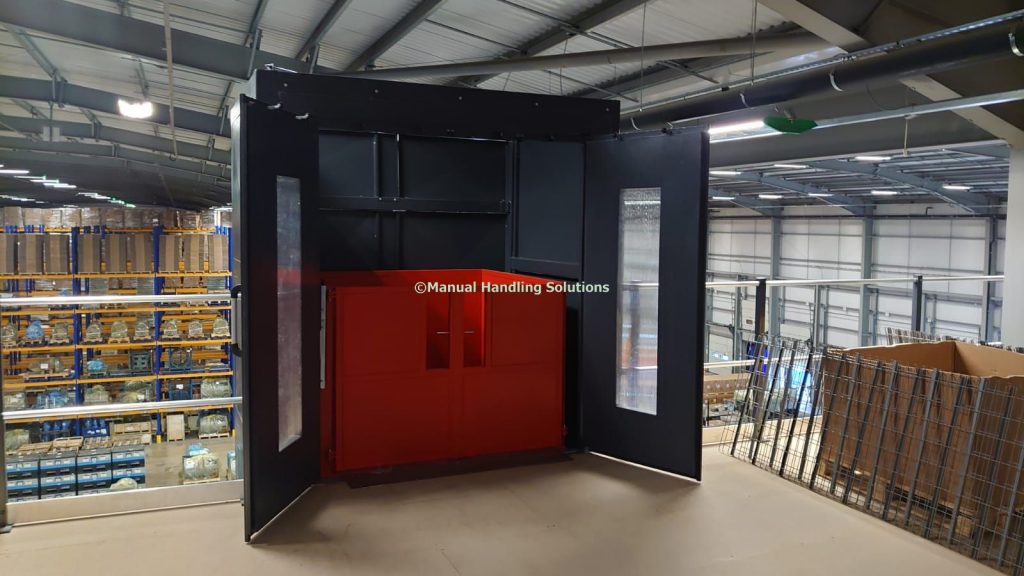

4 stop single mast hydraulic Goods Lift 500kg SWL installed Corby Northamptonshire FFL 10 metres. Goods Lift has a platform size is 1500mm x 1500mm fitted with 1100mm handrails on the non-loading sides x 3, twin platform gates allow for same side loading / unloading these are fully interlocked with the external doors.

The self-supporting lift structure is manufactured from 100mm x 100mm box section steel with clad infilled panels. Goods lift fitted with 2000mm high double loading doors cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level structure is 2290mm.

Goods lift fitted with safety shoot bolts which allow for the operator to enter the lift platform safely while the lift is docked at any of the level, the shoot bolts also eliminates any flex in the platform during loading and unloading. “Press to Go” one touch controls with emergency stop at each level fitted as standard.

At the lower level entrances the lift is accessed by loading ramps 1580mm wide a 1250mm long x 120mm high.

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 3Kw control voltage 24 volt IP55.

General Specification

      • Emergency lowering system when power is cut off
      • Pre wired control box included magnetic starter and overload fuse
      • Upper level travel limit switch and overload relief valve
      • Hydraulic cylinders feature emergency velocity fuse if line breaks
      • Control points are fitted to both ground and upper floor levels
      • The hydraulic power pack and electrical system housed separately at ground level
      • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
      • Lifts loaded and unloaded with hand pallet trucks
      • Installation; 2 x Lifts – Corby Northamptonshire

Bespoke Goods Lifts – A Goods lift is the perfect solution to multi-floor transportation of equipment and goods, reducing the risk to employee’s, increasing efficiency and ultimately improving the bottom line. Our modular design makes it the perfect solution for Warehouses, Distribution Centres, Manufacturing, Retail and more. The goods lift range is fully bespoke to fit all shapes and sizes of goods.

If you have any questions about our goods lifts, or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have. We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Contact us on Tel 01553 811977  or email us at sales@manualhandlingsolutions.co.uk
