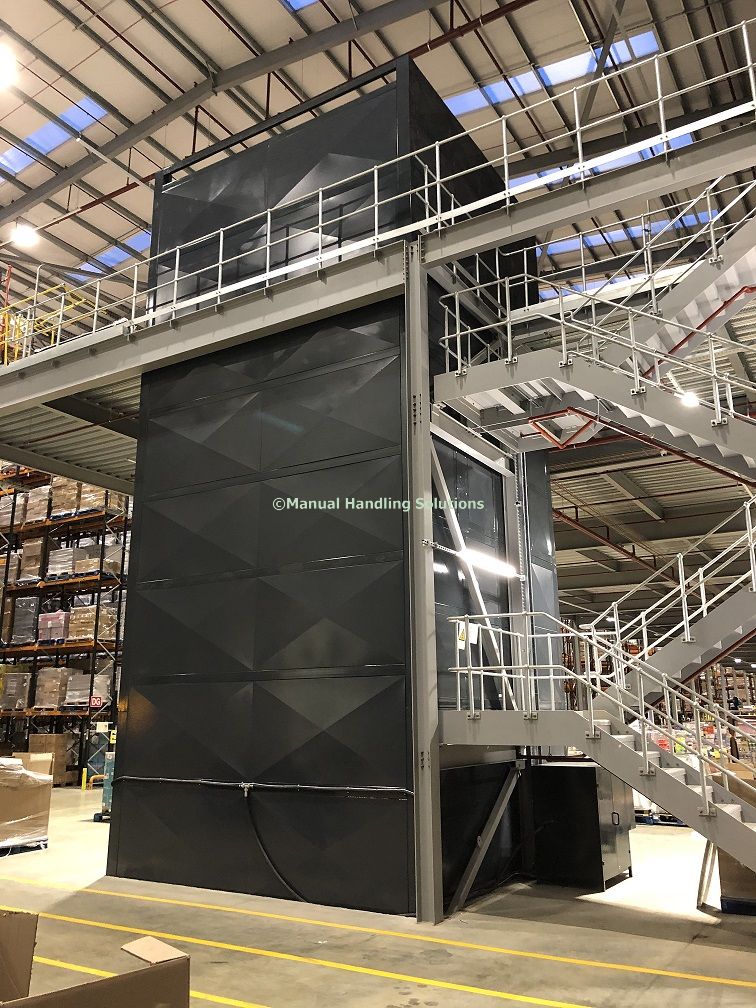

Goods Lift is designed to fully integrate with a Mezzanine floor.

Goods Lifts Bedford

Goods Lifts Bedford

Manual Handling Solutions Mezzanine Goods Lift range offers a complete solution for efficient and safe travel of product between floors within production and warehousing environments.

The heavy duty self-supporting structure is designed to eliminate the requirement for civil works and floor pits, every lift is designed to suit the application intended taking into consideration, lift height, platform size, loading direction, lift capacity, and lift cycles.

Project overview;

2 x 5000kg pit installed 4 column Heavy Duty Hydraulic Goods Lifts with a FFL 7950mm installed Wixam, Bedford.

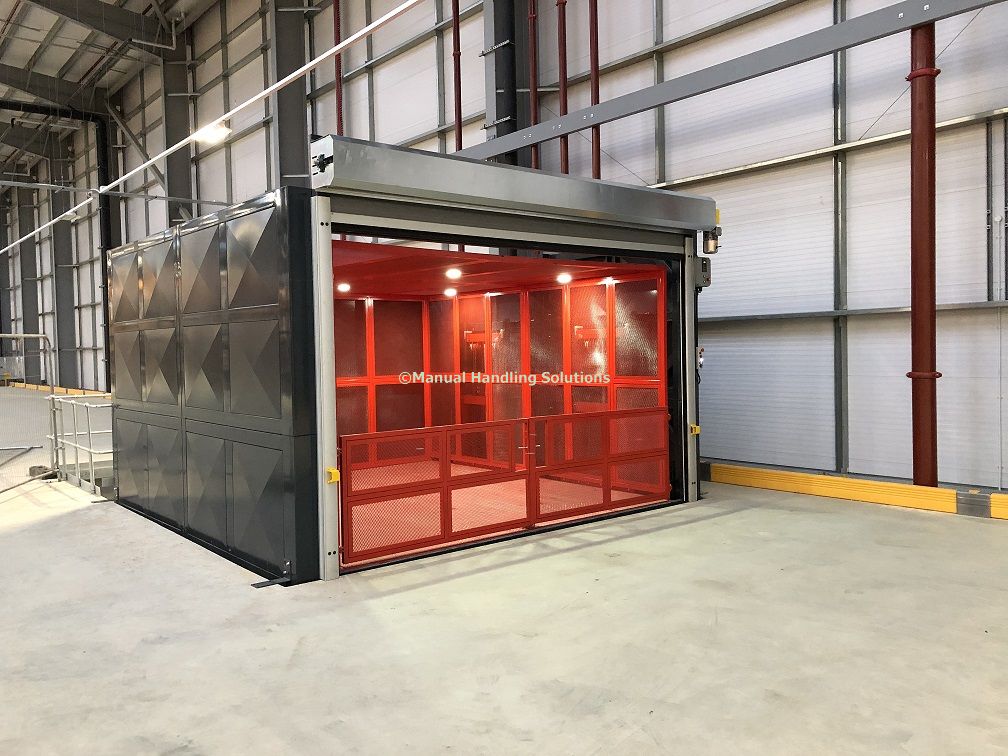

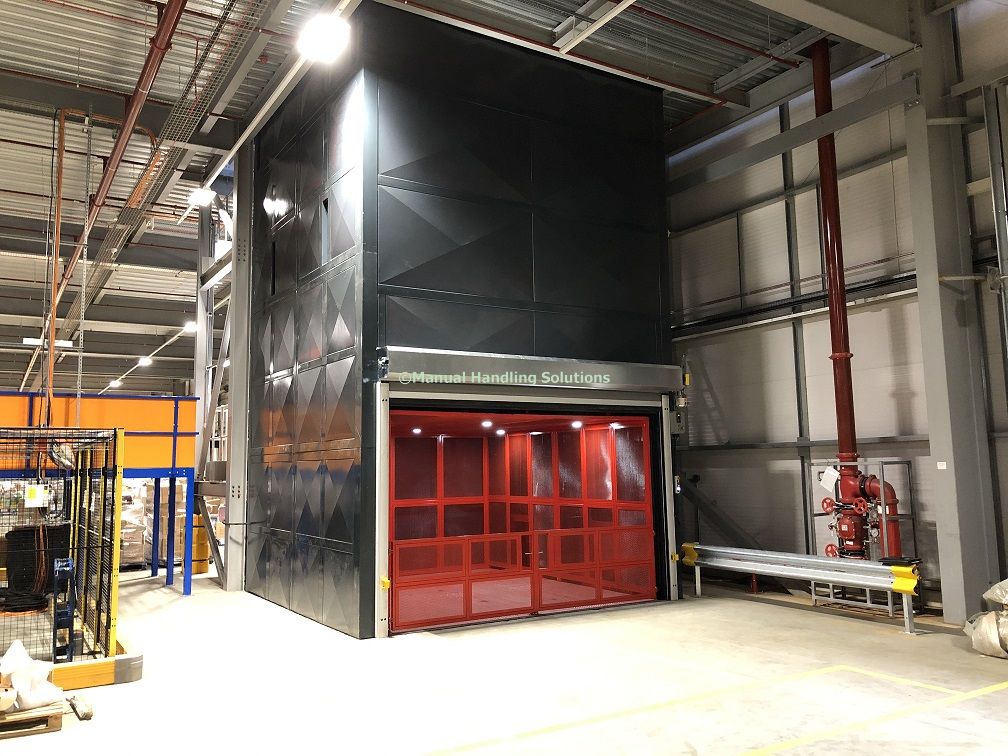

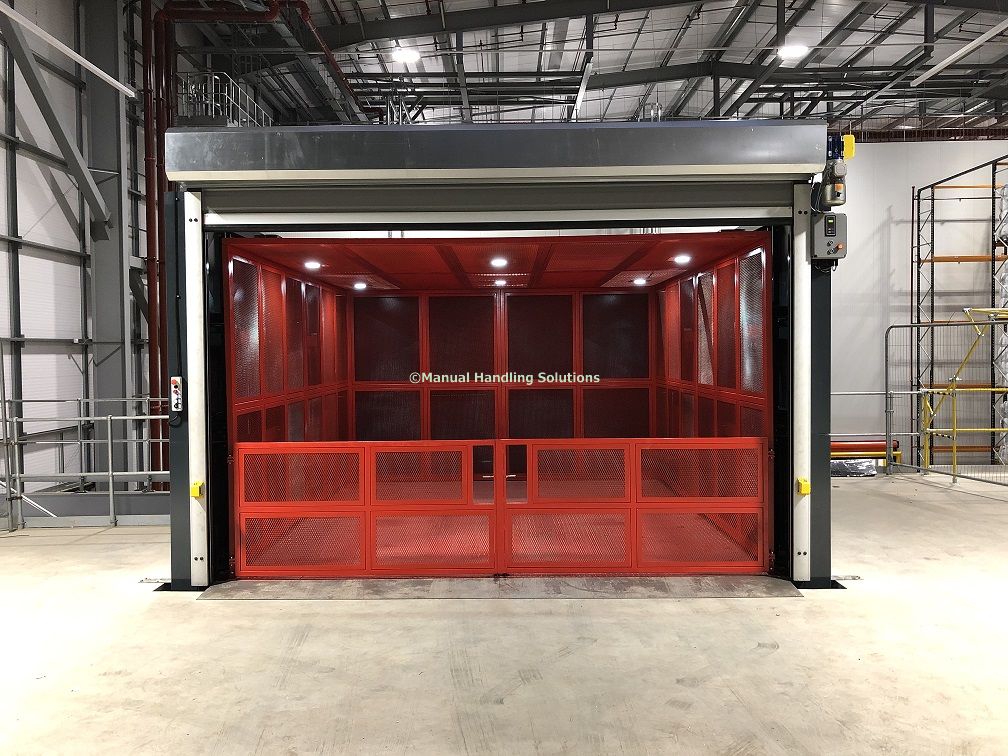

Goods Lift has a platform size is 4000mm x 4500mm fitted with an enclosed mesh cabin with lighting to a height 2500mm and twin opening platform gates which are fully interlocked with the external hybrid roller shutter doors.

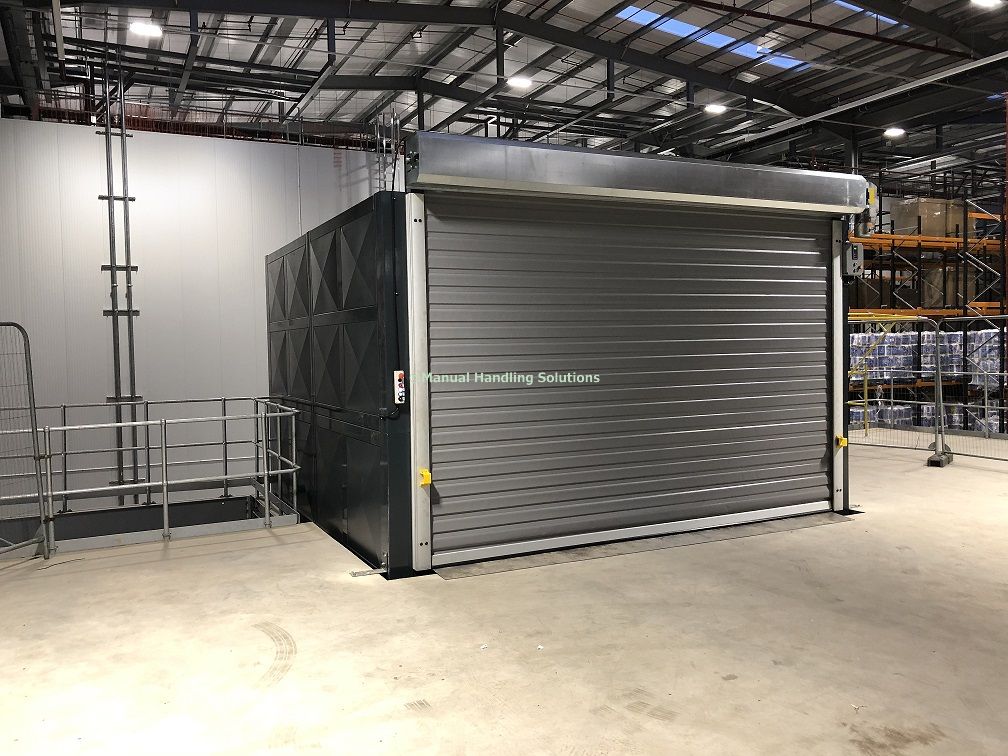

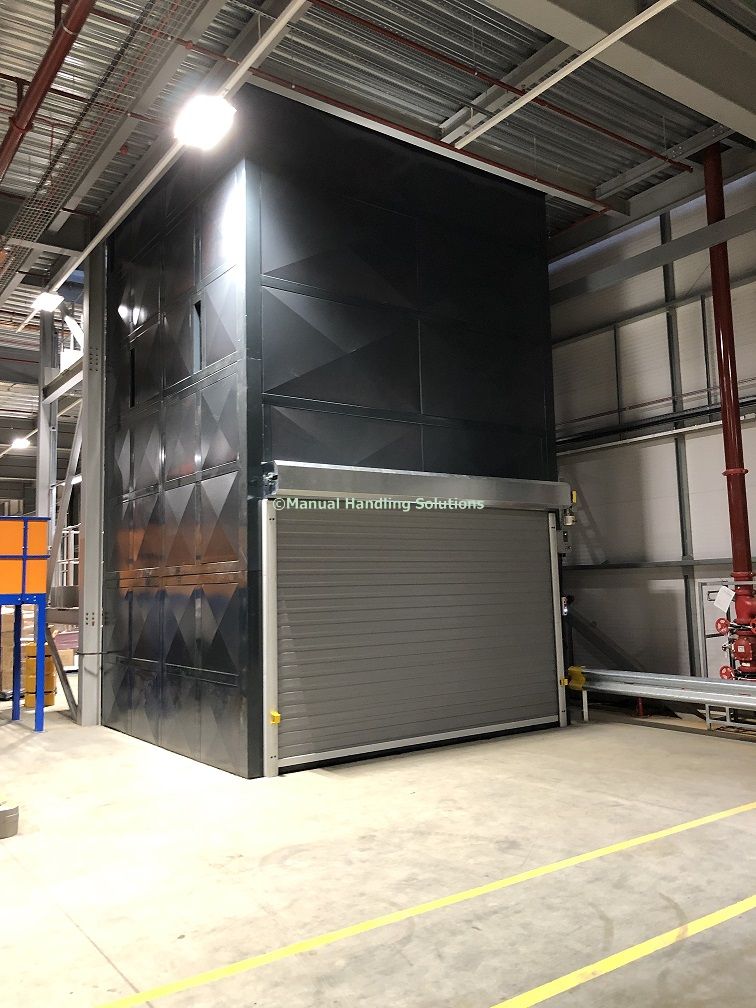

The self-supporting lift structure is manufactured from 200mm x 200mm box section steel with clad infilled panels RAL 7024. Goods lift fitted with 2500mm high hybrid roller shutter doors and these are fitted with interlock system to ensure that the platform gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if platform gates on any level are not fully closed. The overall height of the upper level structure is 2890mm.

Goods lift fitted with safety shoot bolts which allows for the operator to enter the lift platform safely while the lift is docked at the upper level, the shoot bolts also eliminates any flex in the platform during loading and unloading. “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L1000mm x H1300mm. Electrics 3 phase, 400v, 22Kw control voltage 24 volt IP55.

General Specification

      • Emergency lowering system when power is cut off
      • Pre wired control box included magnetic starter and overload fuse
      • Upper level travel limit switch and overload relief valve
      • Hydraulic cylinders feature emergency velocity fuse if line breaks
      • Control points are fitted to both ground and upper floor levels
      • The hydraulic power pack and electrical system housed separately at ground level
      • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
      • Installation; Wixam, Bedford
