Goods Lift
Goods Lift is designed to fully integrate with a Mezzanine floor.

Goods Lifts Rushden

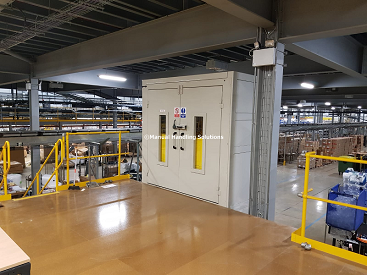

Bespoke Goods Lift Manual Handling Solutions

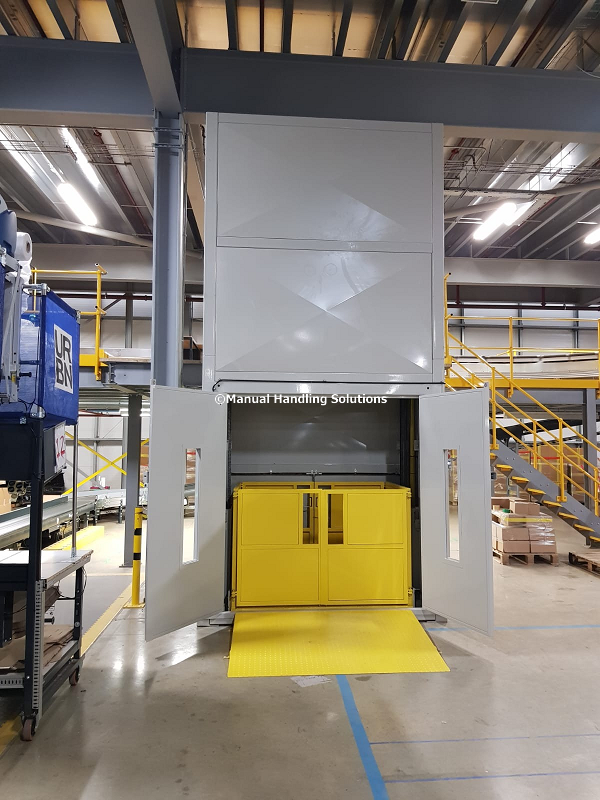

Custom designed to meet client requirements a through car 350kg twin mast hydraulic Goods Lift installed Rushden Northants with a finished floor level 2637mm and platform size 1100mm x 1650mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates finished in Traffic Yellow RAL 1023

A free standing self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Silky Grey RAL 7044.

Goods-Lifts-Rushden PDF

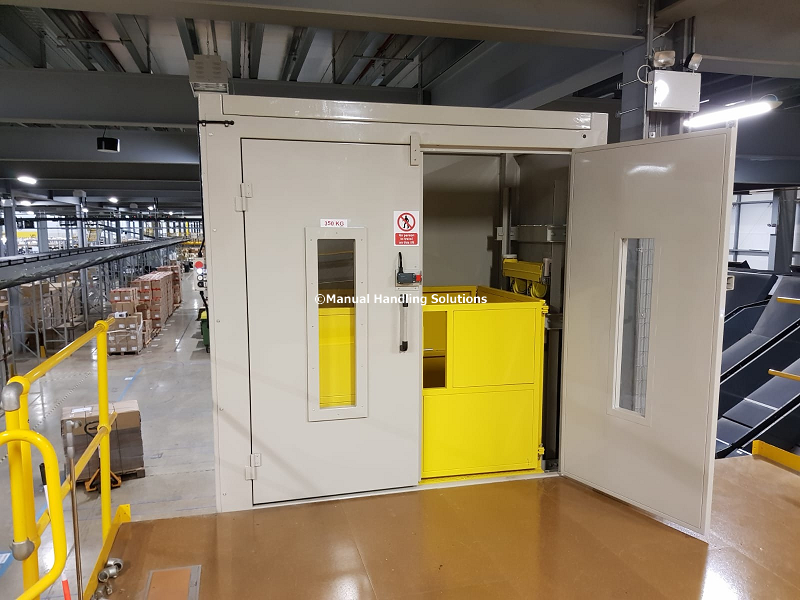

Goods lift fitted with safety shoot bolts which allow for the operator to enter the lift platform safely while the lift is docked at the upper level, also “Press to Go” one touch controls with emergency stop at both levels. At the lower level a fixed ramp 1250mm long x 1650mm wide will be provided to assist loading on to the 120mm deep platform finished Traffic Yellow RAL 1023.

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 2.2Kw control voltage 24 volt IP55.

General Specification

      • Emergency lowering system when power is cut off
      • Pre wired control box included magnetic starter and overload fuse
      • Upper level travel limit switch and overload relief valve
      • Hydraulic cylinders feature emergency velocity fuse if line breaks
      • Control points are fitted to both ground and upper floor levels
      • The hydraulic power pack and electrical system housed separately at ground level
      • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
      • Installation; 1 Spire Road, Rushden, Northamptonshire, NN10 0FN

A goods lift from Manual Handling Solutions is a cost effective solution to transport bulky or heavy items in your commercial application. Health and Safety obligations dictate that you must provide a safe and injury free work place – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. We can custom design a goods lift system to specifically meet your needs. We work to understand your process requirements and design the right solution to increase your productivity, your perfect lift solution is waiting to be designed by our talented engineers.

As with all our products, the pre-engineered configurations of our goods lifts can be customised to suit specific dimensions and specifications. We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Alternatively browse through our extensive range online for goods lifts, material lifts, pallet lifts and mezzanine goods lifts.
